FlightOne Lightning H7 Flight Controller (Connector/Plug Version)
Comments

FlightOne Lightning H7 Flight Controller (Connector/Plug Version)

(No reviews yet) Write a Review
$109.00
Shipping:
Calculated at Checkout

*This is the Connector/plug version

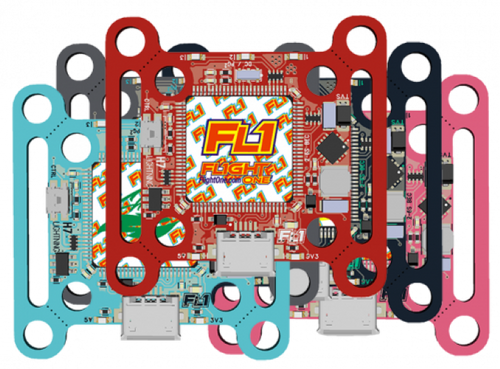

Lightning H7 500mhz Flight Controller

Brains of your Drone

H7 Processor up to 10x faster then F7. Vector OSD (that means very cool animations among other things)… Pit Switch built in… Adjustable Camera/VTX voltage… Fully DJI compatible…. Full size soldering pads, with drilled holes for strength under neath connectors… Full connectors for easy plug and play, with RX/VTX packages that come presoldered… Tons of storage for advanced AI, Logging, etc.. M2 & M3 Mounting..

Neural Networking aka AI support, and features already being developed.

Designed internally by our own team, being produced in the both the United States and China!



Absolute best flight controller available

When you want all the features and speed!

  • 500mhz H7 Processor
  • Graphical Vector OSD
  • Free Replacement Plan
  • Full AI Support
  • High power voltage regulator
  • 4s-6s Lipo Battery Powered
  • DJI FPV Support
  • GPS Return to Home Support
  • 5v or VBAT Camera/VTX Connection
  • Built in pit switch
  • 1Gb Flash for logging/AI features
  • Easy Connectors for All Devices
  • Strong Solder Pads (reinforced with via)
  • 7 UART/USARTS
  • 30.5mm x 30.5mm mounting
  • 20mm x 20mm mounting
  • Full Size Solder Pads Available
  • Camera Control

AI Neural Networking

Using advanced AI techniques the new flight controller supports advanced AI and neural networking. From filters to tuning, we hope to move many processes to a utilize Artificial Intelligence.

GPS Return to Home

Via external GPS module, you can now have your drone automatically return to home. With just the flick of a switch, or on failsafe drone will return above your head, and circle till you land it.

Advanced Vector Graphics OSD

Most advanced OSD design on a flight controller thats currently available in our hobby. Driven by the power of the H7 processor, we can display any shape and design live in your OSD. From boot up graphics to full live charts, and animated menus the possibilities are endless. We can’t wait to fully take advantage of our new graphics abilities.



Durable Voltage Regulator

We wanted a voltage regulator that is dependable and can handle power spikes. Between adding diodes and other protection circuitry and beefing up the existing voltage regulator we have created a flight controller that will last, crash after crash. Much more voltage spike tolerant design, should help you feel you can trust your equipment.

DJI Plug and Play

DJI version comes with a plug and play cable. Just plug in your DJI receiver on one end and the other end into the flight controller, and get in the air quickly. No need to solder any wires, or know any pin outs.

Smart Mounting

Mount directly in a 30.5mm x 30.5mm hole pattern, or snap off the outside holes and mount directly in a 20mm x 20mm mount. Don’t worry about the 30.5mm x 30.5mm from snapping off, because they are engineered to only be removed under higher forces. If your flight controller ever had the holes snap, the crash was so hard, that the break points will actually keep your flight controller from being damaged.

Manufactured in America

We are proud to be the first company to manufacture in the United States. We were able to get pricing to the point where we can produce in the United States without adding the cost on to the customer. Producing our products in both the United States and China will let us leverage shipping to offer the best products and the best support available.

Plug and Play Electronics

We hate building quads, and wanted to make the process as simple as possible. From plug and play VTX and receivers, to plug an play speed controllers, we are minimizing your build times. No longer worry about damaging electronics, with solder mistakes while also giving yourself a quick building experience. Why spend the time doing all the work, when you could be out flying!

Solder or Solderless

The Lightning Flight Controllers is available in two different versions. If you don’t want to do any soldering at all, get the version with connectors. This allows you to easily go plug and play without any other electronics. If a connector ever breaks, the big solder pads are available underneath the connectors. If you prefer to solder, save a couple bucks and get the version with connectors removed.
