Beta75X Whoop Frame
Comments

Beta75X Whoop Frame

(No reviews yet) Write a Review
$8.00
SKU:
75xframe
Availability:
Usually Ships next working day
Shipping:
Calculated at Checkout

This Beta75X frame is customized for 75mm brushless whoop drone. This frame natively supports 110x motors. Also it has a customized battery slot to support 2S battery and you could modify it easily by cut out the stickers to fit 3S 300mah battery. The FC mounting columns still match the whoop style FC boards. At the same time, we would like to keep it durable and light enough for a whoop beast. Come with plastic durable package, which can protect the package from deformation during the shipping process.



SPECIFICATION

Material: Clear plastic

Color: Black / White

Diagonal motor to motor distance: 75mm

Motor mounting hole: only for BETAFPV 1103 motors

FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm

Battery slot size: 11.5x16mm, for BETAFPV 300mAh battery

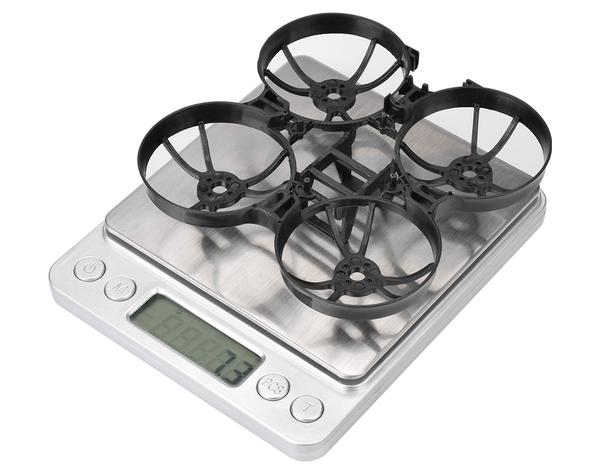

Weight: 7.3g


BATTERY SLOT

In default, the battery slot is designed for 2S 300mAh battery. If you already have many 1S whoop batteries and want to use the them on the this frame, what shall we do?

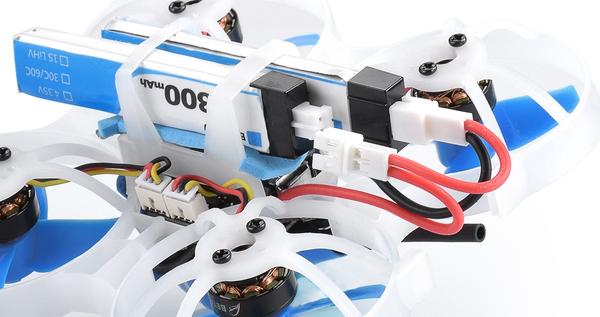

As showen below, with the help of form adapter, 2pcs 300mAh Lipo HV 1S whoop style batteries are inserted in the slot suitably.




But we highly recommend the newest 300mAh 45C batteries for this small beast.


We DO NOT recommend the 1103 11000KV motors for 3S power because the motor may overheat or burn which will cause permanently damage on the motor or ESC. And don't use 1103 8000KV motors for 2S power, the performance will be not as good as the 1103 11000KV motors since lack of power.

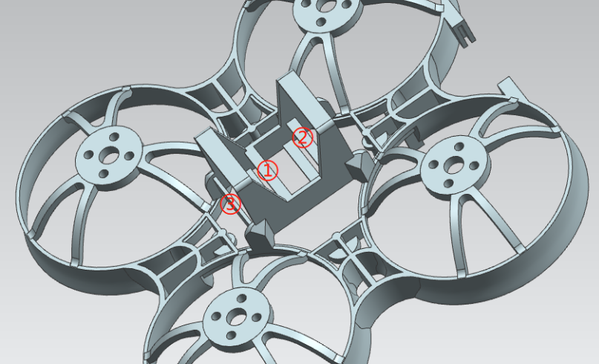

Note: Please kindly cut out these three sticks ① ② ③ by using the scissors as the following picture to fit the 3S 300mah Battery, be carefully not to cut the wire of the receiver.



RECOMMENDED PARTS

Propellers: 40mm 4-blade props (1.5mm shaft hole)

Motors: 110x brushless motors, like 1103 11000KV motors

Battery: 3S 300mAh Battery / 2S 300mAh Battery / 2pcs 1S 300mAh Battery

FC & ESC: BETAFPV 2S Whoop FC stack


PACKAGE

1 * Beta75X 2S Whoop frame (White/Black)
