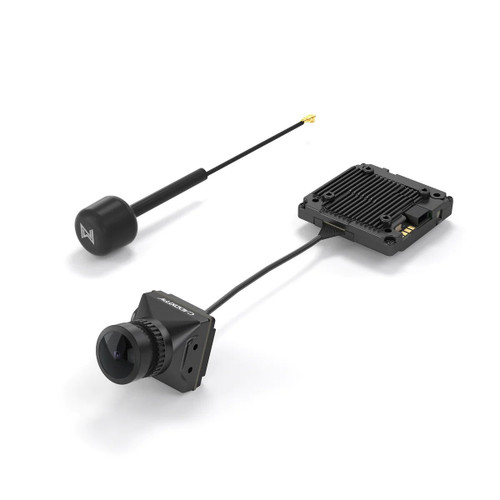

Caddx - Walksnail Avatar HD Pro Kit 32G w/ GyroFlow

Camera Features

• 1/1.8 inch Sony Starvis Ⅱ sensor, come with extremely clear night vision as long as day vision.
• Support 1080P/120fps high frame, also the first high frame night vision HD camera in FPV market.
• Supporting Gyroflow for more stable and smoother footage.

VTX Features

• Add 20*20mm mounting holes for easy installation.
• Add 32g built-in storage option.
• Updated the design of PCB board and outer shell, more durable.
• A spare pad is added to provide two power connection modes.
• Optimized antenna base design and frequency button position for greater convenience.

Avatar HD Pro Kit Features

• 1080P 120fps compatibility
• High frame starlight
• 22ms low latency
• Ranging Mode
• 4km range
• Light weight design
• FOV160°
• Built-in 32G storage
• 6V-25.2V
• Sony Starvis Ⅱ Technology

• The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with ultra-low latency. Support 1080P/60FPS, 720P/120FPS.
• Featuring a 1/1.8 inch Sony Starvis Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.

• The camera ( 32G VTX KIT) supports Gyroflow, take you smooth and stable video quality.

• In addition to the original 25mm x 25mm mounting holes, the kit now includes 20mm x 20mm holes for greater compatibility with a wider range of FPV drone models.
• Updated the design of PCB board and shell, improved the quality of VTX, more durable.
• Optimized the installation place of the antenna, so as to better protect the VTX.
• The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
• A spare pad is added to provide two power connection modes.

• New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage the range of 6V to 25.2V, our VTX delivers unmatched stability and resistance to GPS interference. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

• The Avatar VTX comes with 8g/32g built-in storage it can record 1080p or 720p HD flight videos without interference.32G built-in storage, recording video time increased by 4 times.

• It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

• The compact and convenient single-antenna design makes it easier to assemble your FPV drone. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

• HD 1080p OLED Dual Micro Displays

• The Avatar goggles are designed to be lightweight, mini, small and have a 46° field of view, making them more comfortable for pilots while giving them a more immersive FPV experience.

• The goggles have the feature of adjusting the focus without the need to install, corrective lenses.

• HDMI Output

• Turn on the ranging mode to display the distance between the drone and goggles in real time, in case the drone is lost due to long distance flight.

Q: Do we support 1080P 120FPS?
A: Our VTX products all support 1080P/120FPS, and can reach 1080P/120FPS through firmware upgrade is around the corner.

Specification
Camera
Model    Avatar HD Pro Camera
Image Sensor    1/1.8-Inch Sony Starvis Ⅱ Sensor
Resolution    1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
Ratio    16/9; 4/3
Lens    8Mp
FOV    160°
Aperture    F1.6
Shutter    Rolling shutter
Min.Illumination    0.00001Lux
Weight    9.5g
Dimensions    19*19*24mm
Coaxial Cable    140mm
VTX
Model    Avatar V2 Module
Communication Frequency    5.725-5.850GHz
Transmitter Power (EIRP)    FCC:<30dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
1/O Interface    JST1.0*4(Power in)JST0.8*6(USB)
Mounting Holes    25.5*25.5mm; 20*20mm
Dimensions    33.5*33.5*10.5mm
Storage    8G/32G
Recording    1080p/720p
Weight    17.6g
Operating Temperature    -20-40℃
Channels    8
Wide Power Input    6V-25.2V
Supported FC System    Betaflight; Inav; Fettec; ArduPilot;Kiss
OSD    Canvas mode
Latency    Average delay 22ms
Antenna    1(IPEX)
Avatar V2 Antenna
Polarization    LHCP
Frequency range    5600MHz-6000MHz
Gain    1.9dBi
VSWR    ≤1.5
Input Impedance    50Ω
Interface    IPEX-1
Size    R15 X 45mm(without cable)
Weight    2g

Packing List
USB transfer extension cable    X1
4 Pin silicone cable    X1
M2*4mm screws    X8
M2*5mm screws    X4
M2*6mm screws    X4
M2*14mm screws    X4
M2*5*0.5mm gasket    X4
