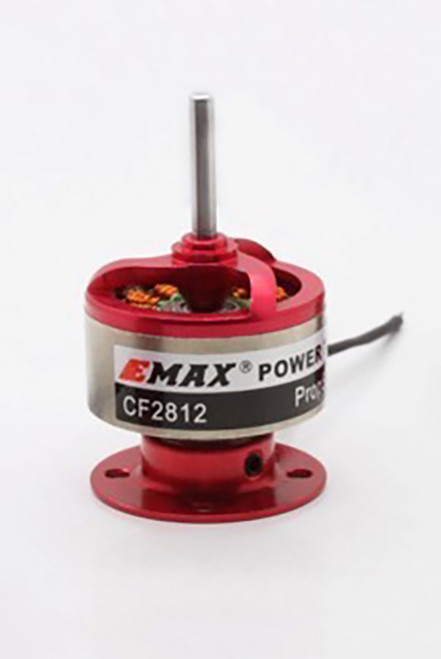

EMAX CF2812 Brushless Outrunner Motor 3S 1600kv

Description
Review
Custom Product Tab

EMAX CF2812 Brushless Outrunner Motor

The Emax CF2812 brushless out-runner motor is slightly more powerful than the E-Flite Park 370. It is capable of producing up to 22oz of thrust and generate about 140W of power. Does not include prop adapter, collet prop adapter required to mount the prop. Bullet connector not installed. We recommend you use 3.5mm bullet connectors for ESC connection.

Specifications:

KV: 1600
Weight: 1.6oz (39g)
Motor Diameter: Approx. 28mm
Total Length: 47mm
Shaft Length: 17mm
Shaft diameter: 3mm
Max efficiency: Approx. 15A
Max Load: Approx. 18A

Motor Dimensions:

Recommended Setup:

18A brushless motor ESC
2-3S LiPO and at least 1000-1300mAh.
Prop Selection: Remember to always use props designed for electric motors, nitro props are heavier and might overload the motor.
With 3S LiPO: 7x3, 6x4
With 2S LiPO: 9x5, 8x4
The above prop selections are recommended for sports flying at open throttle. You may use slightly larger props if you do not fly at constant open throttle.

Write a Review

2 Customer Reviews Hide Reviews Show Reviews

Emax 2812
4
Posted by Paul on 19th May 2022

A popular motor for assassin (crashtesthobbies) works well.
Emax CF2812
5
Posted by Luka Simpson on 2nd Aug 2019

For reference, to help anyone looking at buying one of these:

Produces around ~500gms of thrust on 3s, 5550 gemfan prop (on the small side, I needed ground clearance) and a 20A ESC, enough to give my x1 flying wing infinite vertical abilities. Total weight of motor, prop adaptor. ESC, bullet connectors and a plywood mount was 3oz. Runs cool, lukewarm when kept at WOT (static, pusher set up prevented airflow cooling the motor).
