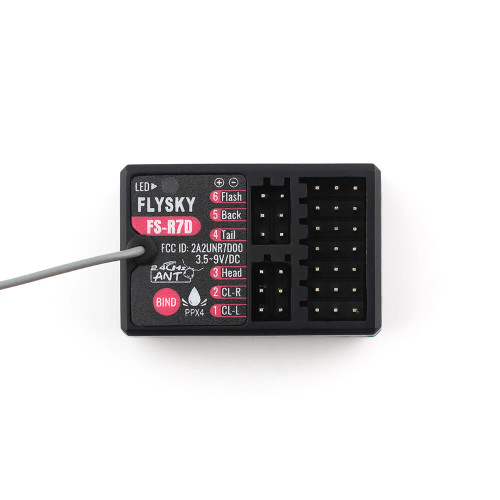

Flysky FS-R7D 2.4GHz 7CH ANT Protocol PWM/PPM Output Light Group Receiver for FS-G7P Transmitter

Description
Review
Custom Product Tab

Flysky FS-R7D 2.4GHz 7CH ANT Protocol PWM/PPM Output Light Group Receiver for FS-G7P Transmitter

FS-R7D is a light group receiver in compliance with the ANT protocol, providing 7 channels. It is equipped with a single antenna externally, supporting the 2-way transfer-back function. It can output PWM signals and light control signals, featuring the compact design. FS-R7D can be adapted to a variety of vehicle models.

Specification:

Brand: Flysky

Product Model: FS-R7D

Compatible Transmitters: FS-G7P(Surface transmitters with ANT protocol)

Model Type: Cars

PWM Channels: 7

Numbers of Light Interface: 6

RF: 2.4GHz ISM

2.4G Protocol: ANT

Antenna: Single external antenna(Coaxial)

Input Power: 3.5 ～ 9V /DC

Working Current: < 90mA (5V)

Data Output: PWM/PPM

Maximum Power: < 20dBm (e.i.r.p.) (EU)

Distance: >300m(Ground distance without interfence)

Online Update: Yes

Water Proof: PPX4

Color: Black

Temperature Range: -10℃ ~ +60℃

Humidity Range: 20%~95%

Dimensions: 35*23.3*13.3mm

Weight: 8g

Certifications: CE, FCC ID：2A2UNR7D00

Pacakge Included:

1x Flysky FS-R7D Receiver
