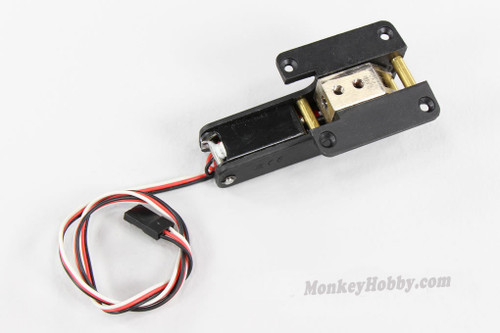

FMS Servoless E-Retract for 1400mm Planes - P51(V8)/T28(V2,V3) (FMSRE042)

Description
Review
Custom Product Tab

FMS Designed Servoless E-Retract

NOTE: These retracts open and close at half the speed of the stock retracts so they require this 6 second sequencer when used on an FMS P-51.

FMS E-Retract003 E-Retract(Plastic) For 1400mm P51 v8 /T28 v2 or v3

New SKU for this part: FMSREX042

It is a slow scale retract, the retracted time is 5-6 second. Designed by FMS team, for 1400mm warbirds updated.

Currentdraw

Idle 10mA

Operating 900mA (maximum)

Pulse width trigger points

Down 1.310ms

Up 1.510ms

Operation with FM and DSM

FM 22ms frame rate,5V signal

DSM 20ms frame rate,3.3V signal

Sequence time

@4.8V 5.68sec

@6.0V 4.57sec

@7.4V 3.68sec

Operating voltage range : 4.8 - 7.4V

Aircraft weight : 8.0 - 13.2 lb (3.63-6.00kg)

Unit weight(FMSRE003) : 2.7 oz (75.2g)
