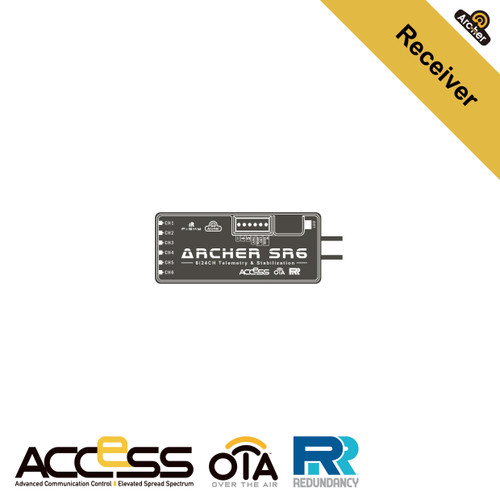

FrSky ARCHER SR6 OTA 2.4GHz 6/24CH ACCESS Full Range Telemetry & Stabilization Receiver

Description
Review
Custom Product Tab

The Archer SR6 are gyro-stabilized receivers with a built-in 3-axis gyroscope and 3-axis accelerometer, they have 6 high-precision PWM channel outputs and features multiple flight modes and configuration methods. They support full-range signal strength with dual detachable antennas it guarantees optimal antenna-reception and maximum range. In addition to all this, the SR6 can also be used as a redundancy receiver along with any other FrSky ACCESS capable receiver equipped with an SBUS port.

All of the Archer receivers are hyper-matched with the ACCESS protocol. They not only feature wireless firmware upgrades and increased range and telemetry performance, the SR6 now supports more functions like configurable telemetry power, S.Port/F.Port/F.Port 2.0 switching and FLR output. Additional valuable features are under development to unlock the true potential of the ACCESS protocol.

ACCESS protocol with Over The Air (OTA)
Built-in 3-axis gyroscope and 3-axis accelerometer sensor
Multiple flight modes and configuration methods (LUA & Freelink)
Supports signal redundancy (SBUS In)
Full control range with telemetry
S.Port / F.Port / F.Port 2.0
External battery / device voltage detection

Dimension: 47.5*20.5*11mm (L*W*H)
Weight: 13g
16/24 Configurable SBUS Channels
6 High-precision PWM Channels
Operating Voltage Range: 3.5 -10V
Operating Current: ＜60mA@5V
Control Range: Full range* with telemetry
(*Full Range: ＞2km, range may vary based on local conditions.)
Voltage Measurement Range via AIN2 (External device): 0-3.3V
Compatibility: All FrSky ACCESS transmitters
