Tamiya 58688 1/10 RC Toyota Land Cruiser 300 (CC-02 Chassis) (ESC included) [58688]

Description
Review
Custom Product Tab

Since the first generation model release in 1951, the Toyota Land Cruiser has been one of the most famous 4WD vehicles in the world. This R/C model assembly kit recreates the Land Cruiser 300 series announced in 2021. The polycarbonate body realistically depicts the eye-catching, dignified form with separate parts to capture the distinctive large front grille’s horizontal fins and metal-plated sections. Light case and door mirror components are metal-plated, and door handles and shark fin antenna on roof are rendered by separate parts for more realism. Silver color 12-spoke wheels are paired with block pattern tires.

【CC-02 chassis】

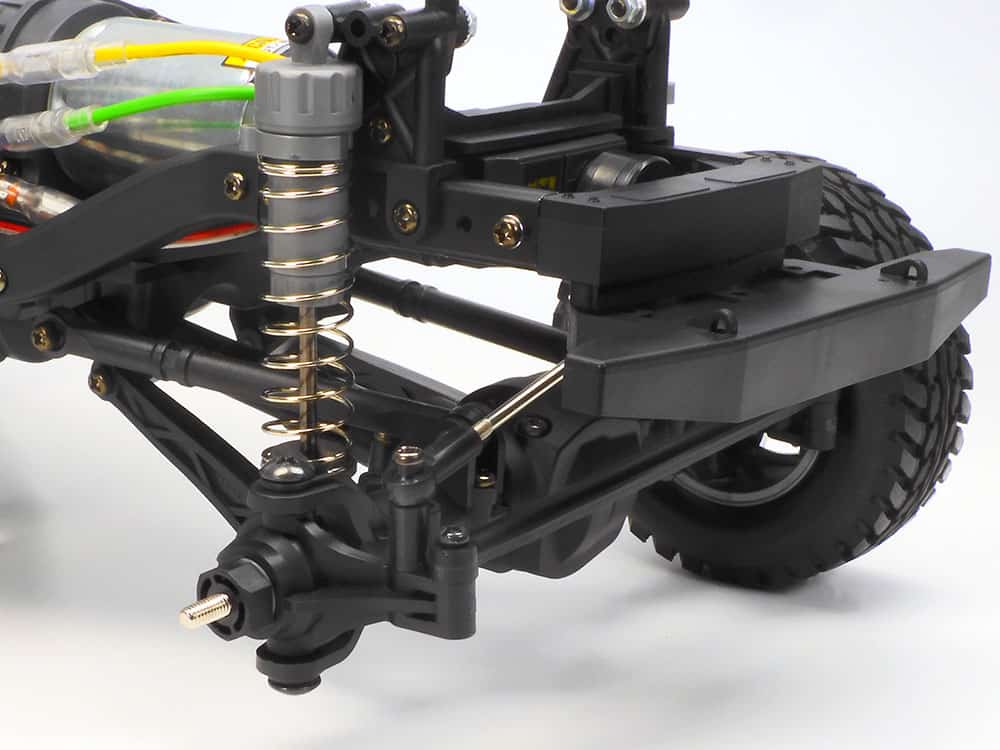

Designed for a wide range of off-road scenes including rocky terrain, the CC-02 chassis’ ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle, with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. 20 gear ratios between 11.09:1 and 29.28:1 are possible. 4-link rigid suspension is employed front and rear, with CVA oil dampers.

【Specifications】

Length: 472mm, width: 200mm, height: 192mm
Wheelbase: 267mm
Tread: 160mm(front), 163mm(rear)
Tire width/diameter: 33/90mm (front & rear)
Ladder-type frame
Shaft-driven 4WD
Front/rear 3-bevel plastic differentials
Front/rear 4-link type suspension
Front/rear CVA oil dampers
Gear ratio =17.33:1 (with kit standard 16T pinion)
RS540 motor

【Separately Required Items】

2-channel R/C system w/ESC
Servo motor for steering
R6/AA/UM3 batteries for transmitter
Battery pack & charger
