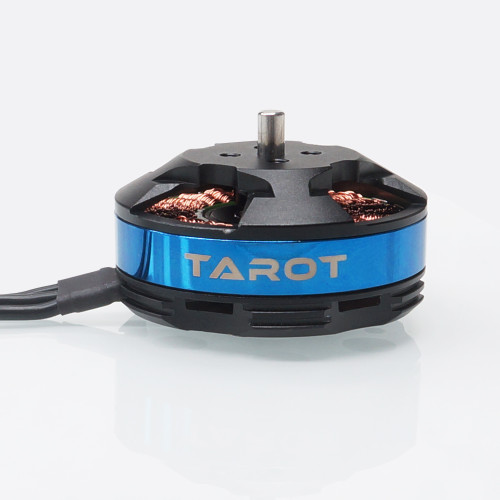

Tarot 4006/620KV Multi-axle Brushless Motor TL68P02 For Drone

Description
Review
Custom Product Tab

Description:

1.Product Name:Tarot 4006/620KV Multi-axis Brushless Motor TL68P02

2.Product description :

Tarot 4006/620 kv efficient multiple brushless motor designed for four axis and six axis rotor aircraft /hexacopter,

using the high precision CNC processing production, shaped flat table is smooth

and flawless, excellent balance to the new design of efficient turbofan cover, provide a powerful cooling airflow,

the rotor using high ndfeb magnetic material and fine.

Product parameters :

Peripheral motor diameter : 46MM

Stator diameter : 40.6M

Stator Thickness : 6MM

Stator : 24 slots

Motor Poles : 22P

Diameter : 0.23MM

Gear shaft mounting diameter : c 4MM

Motor height : 22.0MM

Motor shaft Full length : 30.50MM

Per volt Speed : 620 RPM / Volt

Motor Weight : 82G

Motor resistance : 126 mOhm

14.8V No Load Current : 0.8A

14.8 Load Current : 14A

4006 brushless motor installation specifications : 27.7MM equilateral triangle

Propeller installation specifications : the main hole diameter 4mm, 3mm diameter side hole center distance 12mm

Specifications:

1X 4006/620KV brushless motor 82G

3X M3 x 6MM cup head screws

2X M3 x 8MM round head screws

1X Metal rotor mounting piece 2.5G
