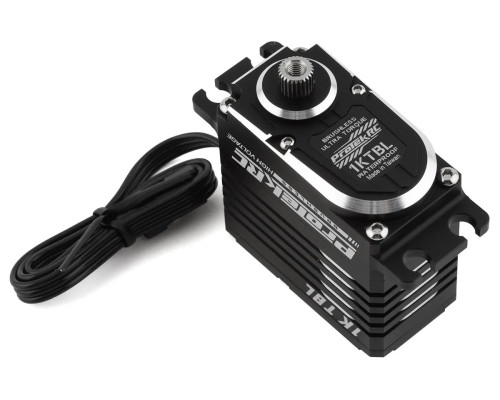

ProTek RC 1KTBL Black Label Ultra High Torque Brushless Waterproof Crawler Servo (High Voltage/Metal Case) (Digital)

Description
Review
Custom Product Tab

ProTek RC 1KTBL Black Label Ultra High Torque Brushless Waterproof Crawler Servo (High Voltage/Metal Case) (Digital)

The ProTek 1KTBL was developed to satisfy the needs of torque thirsty enthusiasts. With the ability to deliver over 1000 oz-in of torque and .11 transit speeds at 8.4V, there aren't many servo options that can compete. Competition rigs, heavy scalers and bashers can take advantage of what the 1KTBL delivers. Even large scale surface models and airplanes can benefit from the insane torque the 1KTBL can produce. Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.

All this power means nothing without durability - and the Protek 1KTBL punches far outside its weight class. This servo offers the power, reliability and durability needed to keep the competition on the ropes. The proven gasket system allows waterproof protection up to 1-meter, so it will go the distance in any condition. A full steel gear train, 25T output shaft and full aluminum machined heat sink case finish off the package to create a tough servo that is perfect for demanding applications. The 1KTBL delivers power in excess - with the durability and reliability that make ProTek R/C servos a an easy choice for enthusiasts that expect the most from their rigs.

"The ProTek 1KTBL is very impressive. It is strong, reliable, and durable enough to take on any course. I put the 1KTBL through rigorous testing and I will definitely be upgrading my entire crawling fleet with this ProTek servo!"
Ben "Toyzuki" Moren, ProTek R/C Team Driver

NOTE: For best results, and peak performance, we recommend you power this servo with a BEC.
If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
Requires a servo extension lead for a drop-in TRX-4 fit.

Features:

Lifetime Gear Warranty
Ideal for a variety of applications
Waterproof up to 1 meter
880 oz-in of torque @ 6.0V, and .16 transit speed
1080 oz-in of torque @ 8.4V, and .11 transit speed
Brushless motor
High voltage circuitry
Full steel gears
Full aluminum black anodized heat sink case
Dual ball bearings
260mm servo lead

Specifications:

Servo Model	1KTBL
Recommended Application	Crawlers, Bashers & Large Scale
Operating Voltage	4.8V - 8.4V
Operating Temperature	14° to 140° F (-10 to +60° C)
Operating Speed @ 6.0V	0.16/60° sec
Operating Speed @ 8.4V	0.11/60° sec
Dynamic Torque @ 6.0V	880 oz-in (63.6 kg-cm)
Dynamic Torque @ 8.4V	1080 oz-in (77.7 kg-cm)
Stall Current @ 6.0V	7.7A
Stall Current @ 8.4V	8.3A
Motor Type	Brushless Digital
Output Shaft	25 Tooth
Gears	Steel w/Lifetime Gear Warranty
Weight	81g
Pulse/Frequency	1520s / 333hz
Dimensions	41x21x39.5mm
Length (Bottom to Mount)	30mm
