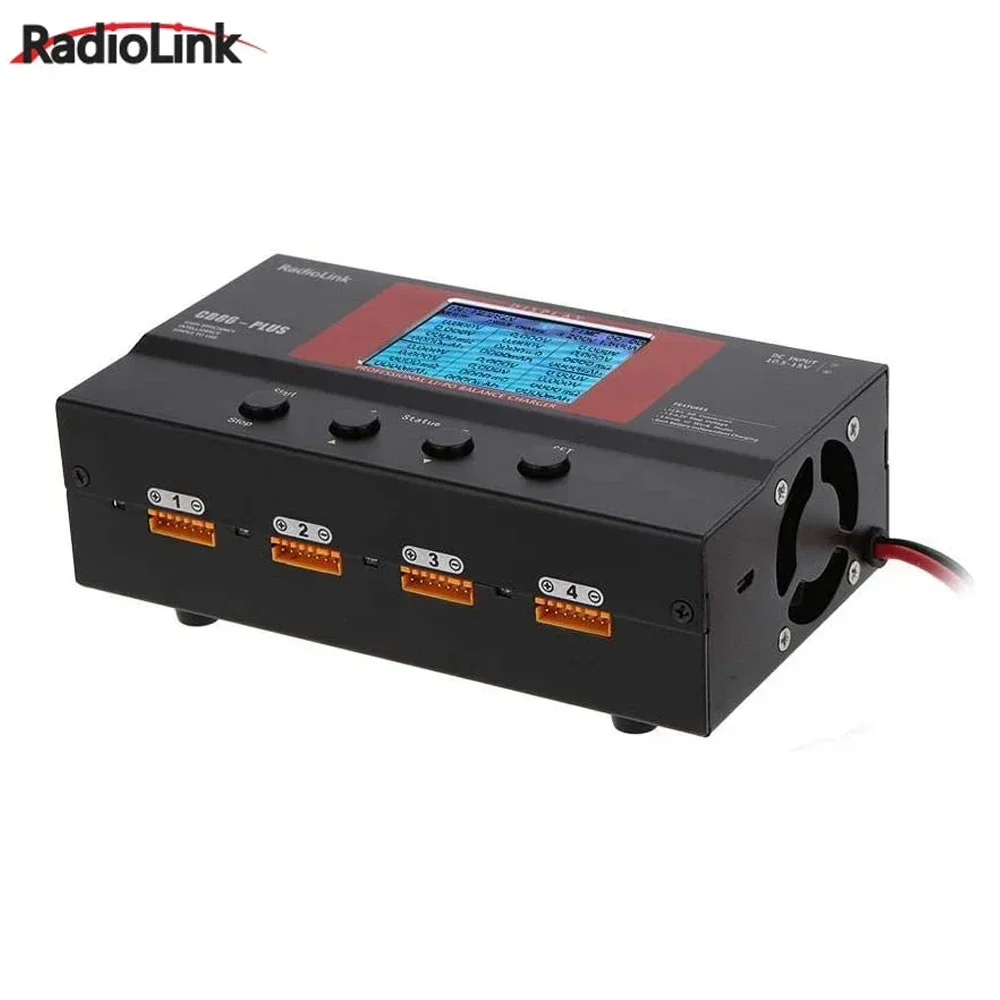

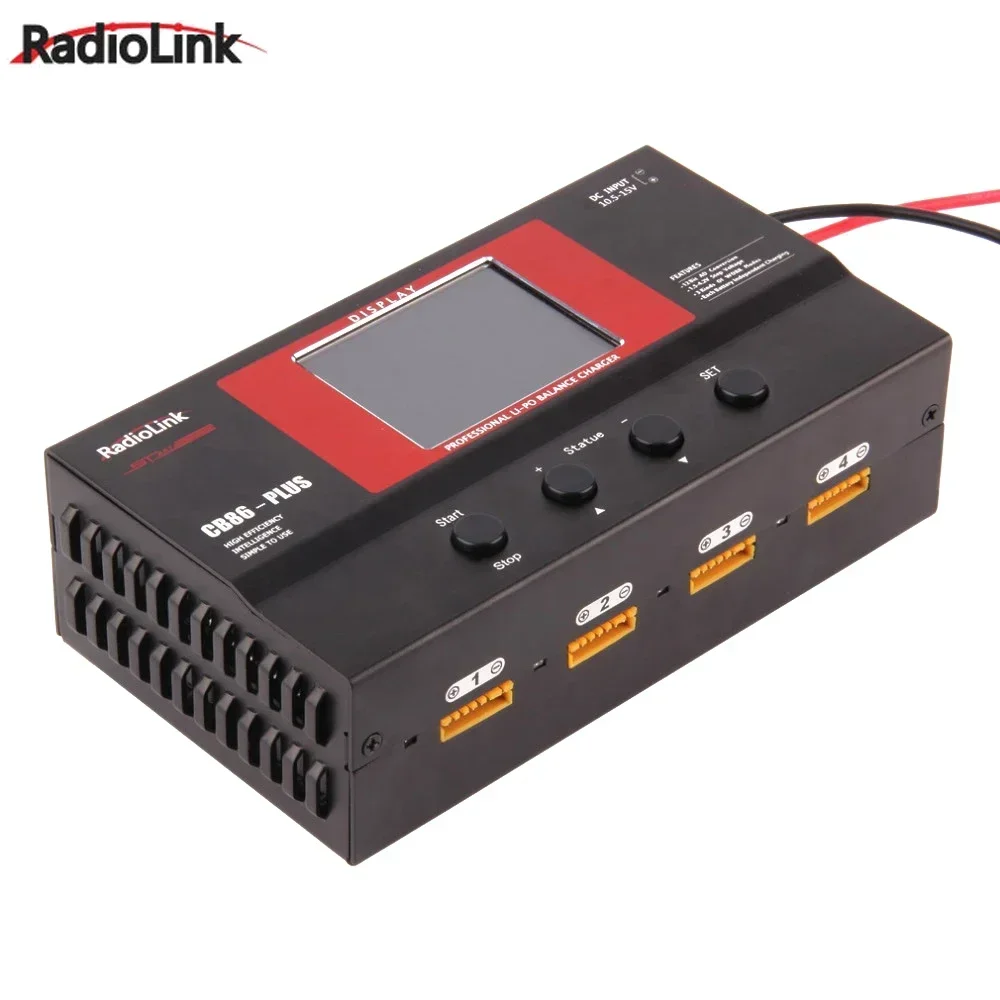

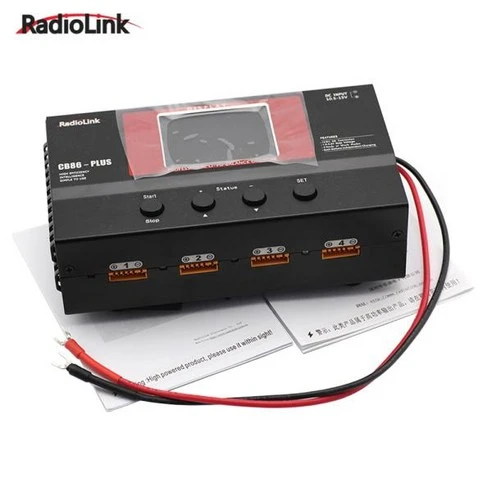

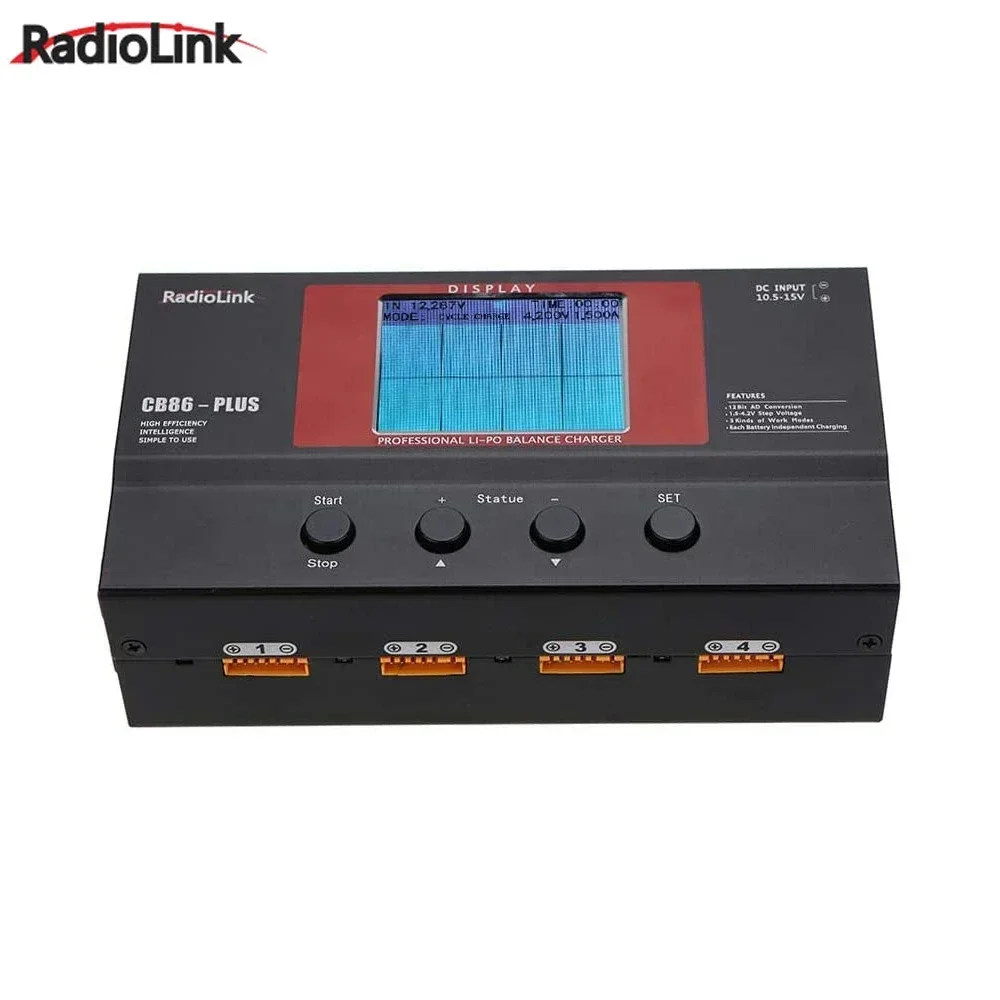

Radiolink CB86 Plus Balance Charger 0.1-6A For 1-6S Lipo Lithium Battery Charger For FPV, Drone, and Helicopter

Radiolink CB86 Plus Balance Charger For 1-6S Lipo Lithium Battery Professional Charger 10.5~15V DC RC FPV Drone Helicopter Model

Radiolink CB86 Plus Balance Charger For 1-6S Lipo Battery

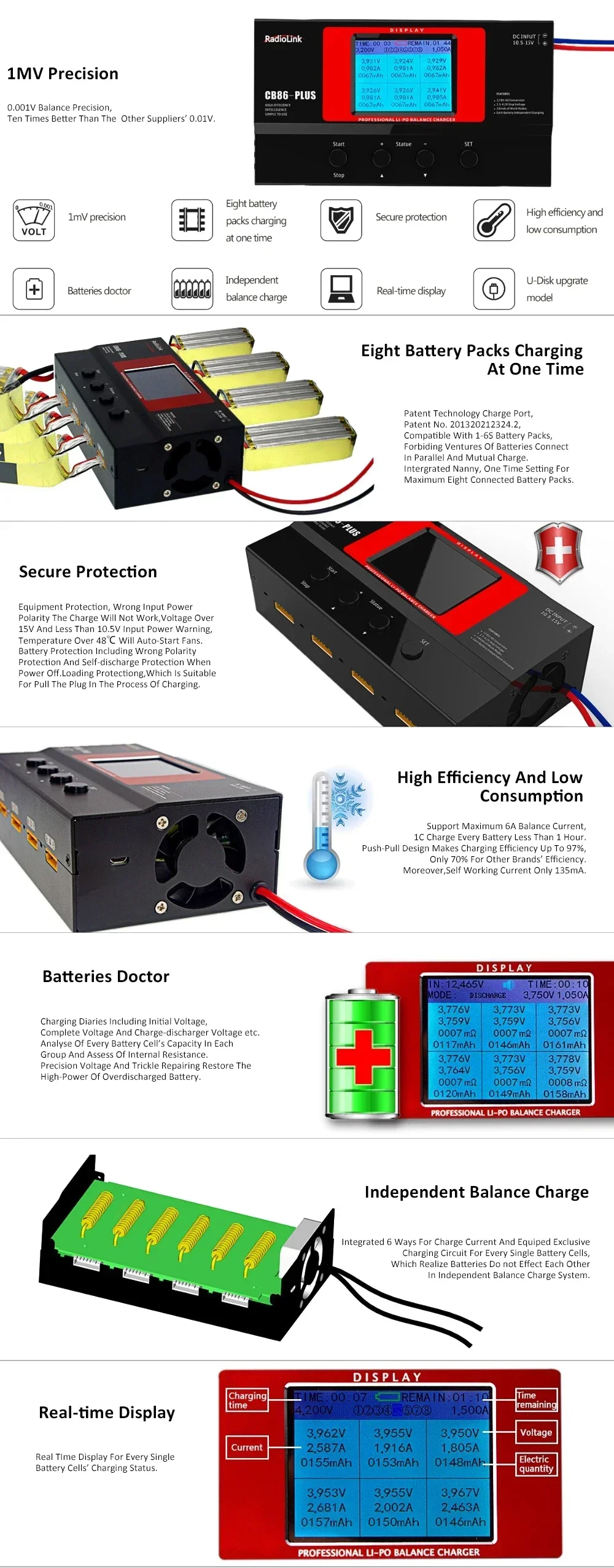

1.0.001V balance accuracy, ten times higher than 0.01V chargers on the market;
2. Automatically detect hardware issues with the input power supply, battery, and charger through software, and provide real-time alarm prompts to ensure safe charging;
3.8 ports, each port can connect any 1-6S, integrated nanny, one-time setting, automatically fully charged 8 sets of batteries, supports 6 1S/2 3S/3 2S/1 2S and 1 2S
4S is combined into a set of 6S batteries for simultaneous charging and discharging.
4. Each port is equipped with 6 built-in charging power sources, which can achieve independent balancing. The charging current and balancing current are both 6A;
5. Each port can independently set information such as charging/discharging voltage and current;
6. A save function that sets the voltage required to save the battery and automatically charges and discharges all batteries to the optimal save voltage.
7. Trickle current charging repair charging. When the charger detects that any battery cell is over discharged, it will automatically enter the trickle current charging repair mode, repair the over discharge voltage with low current, and extend the battery life
The lifespan of the pool.
8. Real time display of charging current and battery voltage for each battery, providing a clear overview of the battery status;
9. Power adaptive, solves the problem of some power supplies not being able to start at rated power: when the maximum output of the power supply cannot meet the charging power, it automatically reduces the current to adapt to the maximum output of the power supply
Get out. Smooth power technology effectively solves the problem of some power sources being unable to instantly start their rated power.
10. Multiple safety protections, power input reverse connection, undervoltage, overvoltage protection, and output charging reverse connection protection, battery protection: anti reverse connection, shutdown self discharge protection, charging status
Unexpected plugging and unplugging, achieving no-load protection, etc., allowing you to use worry free, easy and safe;
11. Cool charging, power management adopts soft switching technology, significantly reducing switch losses. Each battery in the charging section is equipped with the most efficient independent push-pull charging circuit
When balanced, there is no need for resistance to consume power. The operating current of this machine is as low as 135mA, and the charging efficiency is as high as 97%. Whether in standby or full power charging, the machine temperature starts to rise
Finally below 35 degrees.
12. Battery doctor, real-time monitoring of initial voltage, completion voltage, charging and discharging voltage, capacity analysis of each battery in each group, and accurate internal resistance evaluation.
13. Supports direct current power supply with input or output voltage of 10.5-15V and current not less than 15A for 3S lithium battery packs.
14. Support online upgrade in USB mode;

Specifications:
Professional Li battery balance charger, eight battery charge simultaneous
Input voltage:10.5~15V DC
Charge capability:LiPo/LiFePo 1S-6S
Charge voltage:0.00V~4.23V
Disharge voltage:2.00V~4.23V
Charge current:0.1-6.0A
Disharge current:1.05V
Charge mode:Cycle charge and parallel charge

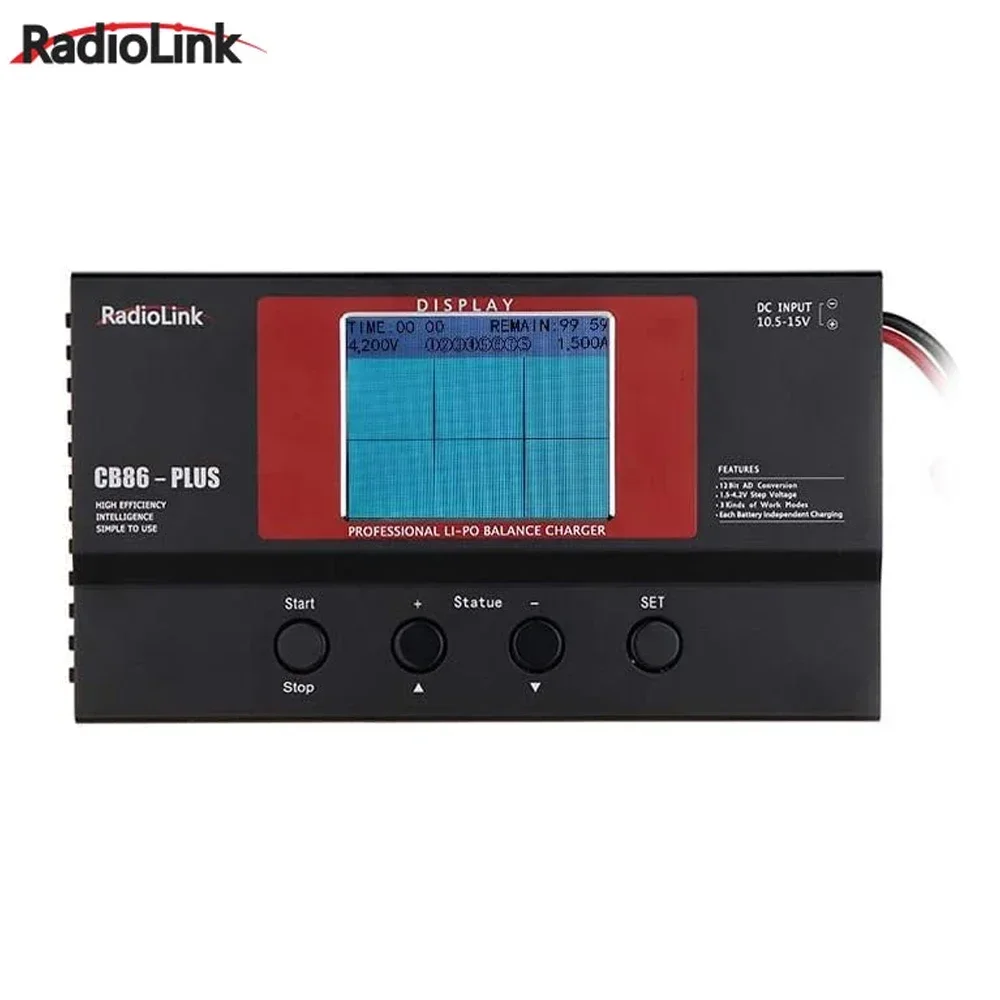

TFT Screen Size: 60*45 mm /2.36*1.77 inch

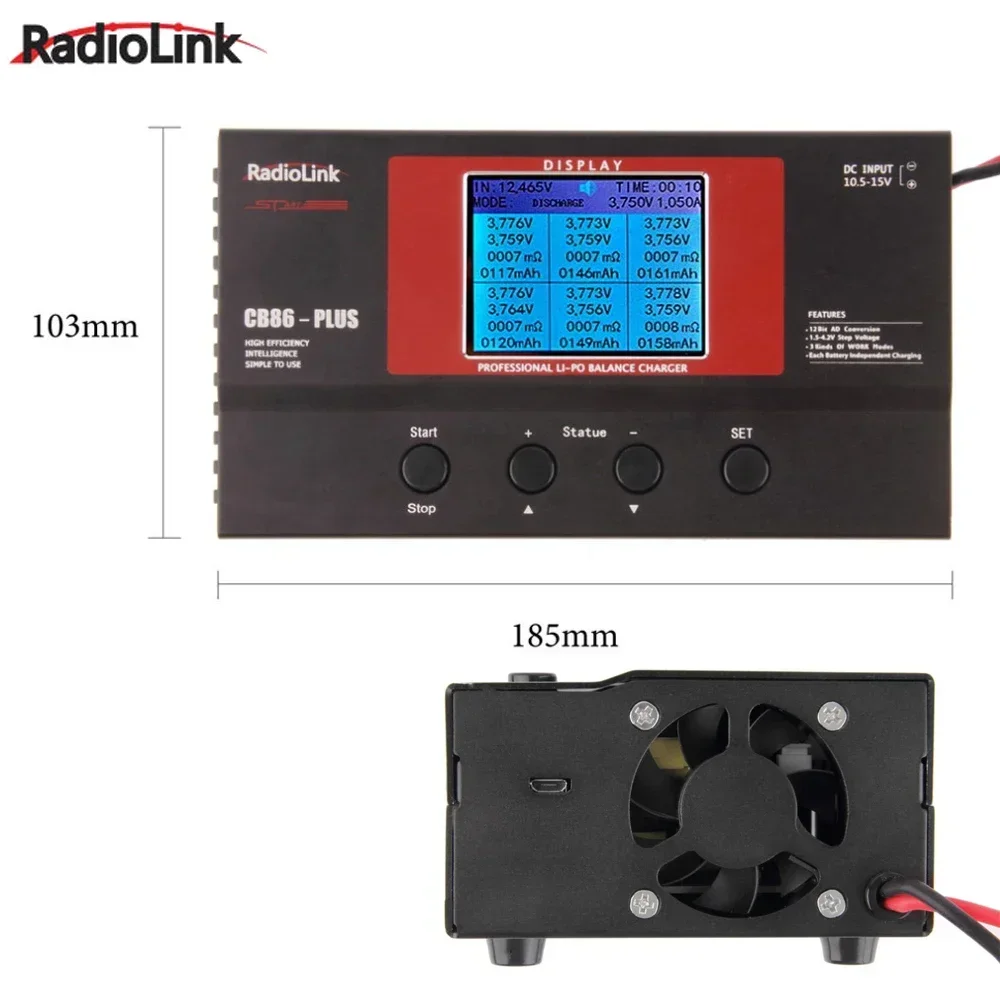

Product Size: 183*103*56 mm
Pakage size: 220*138 *99 mm
Language: English
Product description: eight battery balancer connector, max connecting eight 6S Li battery. safe design. compatible 1S-6S battery.

Adapter, 180W 15A 12V power supply
CB86-PLUS optional
CB86-PLUS charger comes with an optional power supply,
1.180W 15A 12V with power cord, optional European and American specifications
2. No noise, other iron shell power supplies have higher noise levels;
3. It can be directly inserted into the DC power port on the side of the CB86-PLUS charger, and can be used simultaneously with the power supply connected to the positive and negative connection wires on the CB86-PLUS charger. if it
If one power supply has insufficient current, the other can be replenished. If one power supply is sufficient, there is no need to connect two.
