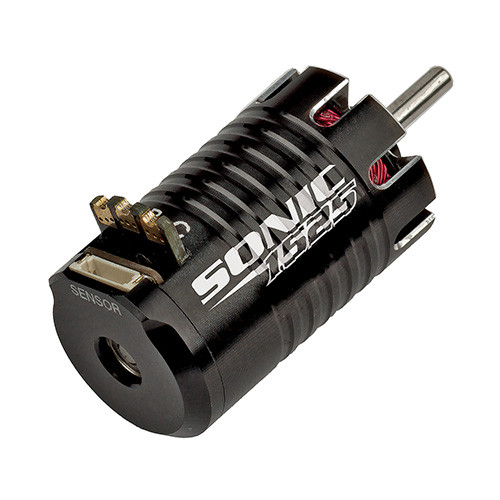

Reedy Sonic 1525 Sensored Micro Brushless Motor (3500kV)

Dominate the 1/28 racing scene with the Reedy Sonic 1525 Sensored Micro Brushless Motor—a compact powerhouse engineered for smooth throttle response, high-RPM speed, and race-winning reliability. Built with cutting-edge brushless technology, it delivers the precision and performance serious micro racers demand.

Competition-Bred Micro Power

The Reedy Sonic 1525 Sensored Micro Brushless Motor is purpose-built for 1/28 scale competition platforms, delivering reliable, race-proven performance backed by decades of championship-winning engineering. Its 2-pole high-speed rotor is rated for up to 200°C, paired with high-grade heat-resistant windings and ultra-smooth NSK Japanese bearings for consistent power and durability at extreme RPM. Designed for precision and efficiency, it provides the punch and linear throttle response serious racers demand.

Advanced Cooling and Control

An anodized aluminum housing maximizes heat dissipation, while the thick gold PCB solder tabs ensure strong, dependable connections. The unique dual sensored and sensorless startup compatibility offers smooth performance across setups, supported by an industry-standard 5-pin sensor port. With eight 2mm mounting holes and multiple kV options available, the Sonic 1525 is an excellent SPEC-class choice for platforms like the Kyosho Mini-Z, Atomic MRT-Evo, Team Associated RC28R, XBility XBOne, and XB-F1.

Features:

Designed for 1/28 scale competition racing
2-pole high-speed rotor rated up to 200°C
High-grade heat-resistant red windings
NSK Japanese bearings for smooth high-RPM operation
Sensored and sensorless dual-mode compatibility
Anodized aluminum housing for maximum heat dissipation
Thick gold PCB solder tabs for secure connections

Specifications:

Suggested Application	1/28 & 1/24 Racing
kV Rating	3500kV
Type	Brushless - Sensored
Input Voltage	2S LiPo
Poles	2
Watts	80
Connector	Solder
Length	0.98in (25mm)
Diameter	0.59in (15mm)
Shaft Length	0.39in (10mm)
Shaft Diameter	0.07in (2mm)
Weight	0.59oz (17g)
