Tamiya 58702 - 1/10 Subaru BRZ ZD8 TT-02 [ESC included]

Description
Review
Custom Product Tab

1/10 R/C Subaru BRZ (ZD8)
(TT-02)
Item No: 58702

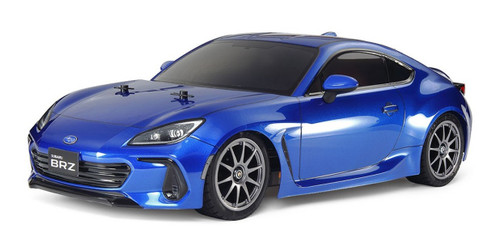

Length: 426mm. Image shows painted and assembled kit.

Modern Masterpiece
The BRZ - SUBARU’s first rear-wheel drive sports car, which debuted in 2012 - welcomed a second model in April, 2021 in Japan, which is recreated by this R/C model assembly kit. A polycarbonate body recreates the stylish form of the 2-door coupe car in style, with separate polycarbonate parts included for front and rear light cases.

★The flowing lines of the second generation SUBARU BRZ car are rendered in style by the kit's lightweight polycarbonate body.

★Headlights are depicted using separately molded polycarbonate light case components, which are to be painted and have stickers applied.

★The car features distinctive air intakes sandwiching the front bumper on either side, and these are recreated using stickers in the kit.

★In the center at the front is the depiction of the hexagonal grille. Black spoiler section, license plate and emblem are stickers.

★The subtle yet effective air outlets on the behind of the front fenders are depicted using stickers from the model's comprehensive sheet.

★Side mirror upper sections are to be painted in the body color and lower sections black. Stickers are used to recreate side mirror surfaces.

★Left: The sleek, eye-catching roof design is of course captured with realism, along with its rear shark fin antenna.

★Right: At the rear are an integrated depiction of the duck tail trunk lid shape, plus separately molded light cases.

TT-02: Adaptable, balanced shaft driven 4WD
The shaft-driven 4WD TT-02 chassis employs a longitudinal layout with the battery on the left and the motor on the right, to give excellent stability. In addition, it features identical left and right suspension arms and uprights for ease of assembly, plus easy-to-maintain gearboxes. It is a highly adaptable chassis, as it offers 2 different wheelbases, 2 ground clearance settings and 2 tread set-ups in addition to a range of 10 possible gear ratios. It is not short on looks either, with brake disc-shaped wheel hubs and stylish front bumper supports. Black 10-spoke wheels use tread patterned semi-pneumatic tires.

★Left: Resin ball links in the steering linkage joints make for smooth, comfortable motion.

★Right: Wheel hubs are shaped to look like brake discs.

★Left: Motor cover includes removable cooling duct (not attached in image).

★Right: This image gives a closer look at the rear double-wishbone suspension with friction dampers.

Specifications
★Length: 426mm, width: 188mm, height: 131mm ★Wheelbase: 257mm ★Tire width/diameter: 27/67mm (front & rear) ★Bathtub-type frame ★Shaft-driven 4WD ★Front/rear 4-bevel resin differentials ★3-piece steering tie-rod ★4-wheel double wishbone suspension ★Front/rear friction dampers ★Gear ratio = 8.27:1 (9 further ratios from 11.38:1 to 7.28:1 possible with use of separately-sold pinions) ★Type 540 motor

Separately Required Items
★2-channel R/C system ★R6/AA/UM3 batteries for transmitter ★Battery pack & charger

ESC included
