Special Edition R/C Product
1/10 R/C Top-Force Evo. (2021)
Item No: 47470

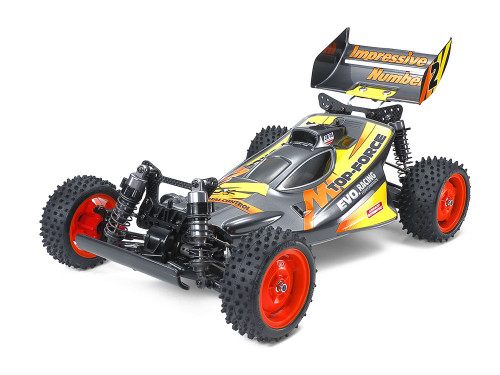

Length: 400mm. Image shows assembled kit.

Impressive Indeed!
This R/C model assembly kit is a re-released and updated version of Top-Force EVO., a buggy first released in 1992. Its honed body and rear wing are molded in polycarbonate pre-painted in gun metal color, the shaft-driven 4WD drivetrain employs three differentials amd universal drive shafts, and the chassis is based around a rigid and lightweight carbon fiber double-deck frame with damper stays and battery plates crafted in the same material. The model is compatible not only with 7.2V Racing Pack products, but also the LF2200-6.6V Racing Pack.

Race-Oriented Shaft-Driven 4WD Chassis
This chassis features a race-oriented design with a lightweight carbon fiber double-deck layout that supports the gearboxes with 2mm thickness carbon fiber plates. A drivetrain with ball differentials front and rear and center one-way contributes towards sharp steering response, while front and rear assembly type universal shafts offer superior efficiency. Four-wheel independent double wishbone suspension employs oil dampers with aluminum cylinders, while turnbuckle upper arms allow camber adjustment. Vibrant orange wheels are paired with grippy spike tires.

★This model features a highly refined polycarbonate body design that oozes speed; stickers are included in the kit to decorate it.

★A 4WD setup employs a steel propeller shaft to the right of the upper deck. Drivetrain and steering linkage feature efficient ball bearings.

★This image gives a close-up on the front double wishbone suspension, which also features turnbuckle shaft upper arms for easy adjustment.

★Upper and lower decks, plus front and rear damper stays, and battery plates are crafted in lightweight, rigid carbon fiber material.

★This image of the double-wishbone rear suspension shows off the dampers with aluminum cylinders. Universal drive shafts are employed front and rear.

★Gear covers can be removed simply with the loosening of four screws, allowing easy access to the differentials for swift maintenance.

★Alluring, vibrant orange color dish design wheels are paired with spike tires that ensure the Top-Force Evo. has plenty of grip.

★There is exemplary protection from dust, dirt and other potential infiltrators thanks to the kit's tough polycarbonate undercowl.

★An epic polycarbonate wing on the rear of the buggy features integrated end plates and a slatted design that really looks the part.

Specifications
★Length: 400mm, width: 250mm, height: 190mm ★Wheelbase: 270mm ★Tread: 217mm (front), 205mm (rear) ★Carbon fiber double deck frame ★Shaft-driven 4WD ★Front & rear ball differentials ★Center one-way ★3-Piece steering tie-rod (with ball bearings) ★4-Wheel independent double-wishbone suspension ★Tire Width/Diameter: 32/82mm (front), 41/82mm (rear) ★Aluminum cylinder oil dampers ★Gear Ratio = 8.59:1 ★Type 540 motor ★Full ball bearings ★Electronic Speed Controller (ESC) is included

Separately Required Items
●2-Channel R/C Unit　●Battery Pack & Charger ●R6/AA/UM3 batteries for transmitter. (Please search our Tamiya combo for pircing)
