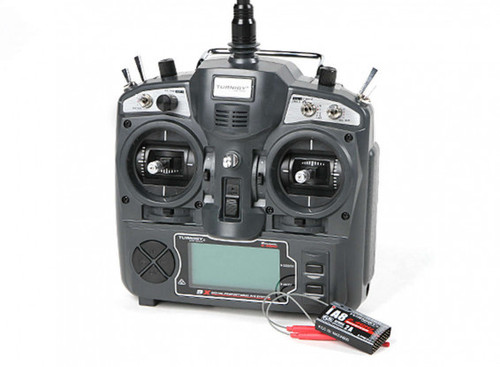

Turnigy 9X 9Ch Mode 2 Transmitter w/ Module & iA8 Receiver (AFHDS 2A system)

Description
Review
Custom Product Tab

Turnigy engineers have given the Turnigy 9X an extreme makeover. It now comes with updated firmware, SBUS/IBUS and CPPM/PWM support, and new protocol. The Turnigy 9X is now using the solid and reliable 9 channel 2.4GHz Automatic Frequency Hopping Digital System (AFHDS 2A) spread spectrum technology, making it compatible with a huge range of receivers. This system is supplied with the Turnigy TGY-iA8 Receiver for PPM/PWM support.

The ergonomically designed case makes for easy use of all controls. The switches and pots are all positioned for comfort and the adjustable length sticks can be tailored to your own requirements. A monochrome LCD screen makes it easy to program and change settings.

The transmitter and receiver pair has its own unique ID to prevent other RC systems from accidentally connecting to or interfering with the Turnigy 9X. Each transmitter hops between 16 channels in order to reduce interference from other transmitters. The high-efficiency high gain antenna cuts down on interference, while using less power, but maintains a strong reliable connection.

The Turnigy 9X can be purchased as either Mode 1 or Mode 2. Without a doubt, this is the best value 9 CH system available!

Features:
• AFHDS 2A Protocol
• 8 Model Memory
• Multi-channel Frequency Hopping
• Omni-directional gain antenna
• Unique ID recognition system
• Low power consumption
• SBUS/IBUS and CPPM/PWM support

Transmitter Specs:
Number of channels: 9
Model Types: Helicopter, fixed-wing, and glider
Frequency range: 2.408-2.475GHz
Transmitter power: Not more than 20dBm
Number of bands: 135
Bandwidth: 500KHz
2.4GHz protocol: AFHDS 2A
Encoding: GFSK
Channel resolution: 4096
Low voltage alarm: Below 9V
Charging interface: None
Antenna length: 26mm
Weight: 690g
Input power: 12V DC, 8 x “AA” (1.5V)
Display: STN semi-permeable positive lattice VA 73 39mm LCD
Size: 190x112x257mm
Color: Grey
Online Update: N/A
Certification: CE, FCC ID : N4ZRM00300

Receiver Specs (iA8):
Number of channels: 8
Model Types: Helicopter, fixed-wing, and glider
Frequency range: 2.408-2.475GHz
Bandwidth: 500KHz
Number of bands: 135
Receiver: -105 dBm
2.4GHz protocol: AFHDS 2A
Modulation type: GFSK
Stick resolution: 1024
Input voltage: 4.0~6.5V DC
Antenna length: 26mm
Weight: 13g
Size: 25 x 8.1 x 44.5mm
Certification: CE, FCC ID : N4ZIA800

Included:
Turnigy 9x 9Ch Transmitter
Turnigy AFHDS 2A module
Turnigy iA8 8-channel receiver

Requires:
8 x “AA” batteries

NOTE: "SWITCH ERROR" means you have one of the switches in the wrong position when you turn the radio on. It is not a fault.
